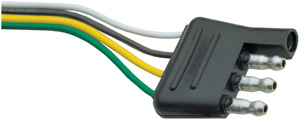

5 Way Wiring Color Codes (for newer boat trailers)
White - Ground
Brown -
Running Lights
Yellow - Left
Turn, plus Stop
Green - Right
Turn, plus Stop
Blue - Wire to the backup lights (this wire releases the brakes when backing up)
6 & 7 Way Electrical Connector Wiring Guide ILLUSTRATIONS BELOW REPRESENT A REAR
VIEW OF CONNECTORS There are two different slots with these plugs. One in the rear, and one in the front. This diagram represents the rear.
6-Way Car End**
6-Way Trailer End
7-Way Car End (flat pin RV)
7-Way Trailer End
**Alternate wiring diagram switches terminals (A) and (S).
